3mm C Shape Purlin Roll Forming Machine PLC 5.5kw Metal Roof Wall Panel Roll Forming Machine
1. Description of C U Z Purlin Roll Forming Machine
1. This machine is the industry's best value in a Rapid Inter-changeable CZ Purlin Roll forming System.
2. Capable of producing the standard industry range of Cee, Zee, U shapes 80-300mm.
3. Providing programmable modular hydraulic punching and cutting.
4. Rapid C/Z profiles and its size changeover times under 5 minutes.
5. European quality control, machine surface adopts podwer coating, coating before assembly.
2. Specifications of C U Z Purlin Roll Forming Machine
| Machine Specifications |
| Weight | About 9000kgs |
| Size | About 10m x 1.4m x 1.8m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow |
| Suitable Raw Material |
| Material | Galvanized Steel Coils |
| Thickness | 1.5-3.0mm |
| Coil width | According to products size |
| Yield strength | 235Mpa |
| Main Technical Parameters |
| Quantity of forming rollers stations | 14-16 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 10-15m/min |
| Production Speed | 4-6m/min |
| Forming rollers material | Gcr15 mould steel, with quenched treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric power requirement | Main motor power: 15kw |
| Hydraulic unit motor power: 5.5kw |
| Electric voltage | According to customers requirement
|
3. FAQ of C U Z Purlin Roll Forming Machine
Q1. Do you have after-sales support?
A1: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q2. Do you sell only standard machines?
A2: No, most of our machines are built according to customers specifications, using top brand components.
Q3. What will you do if the machine is broken?
A3: We provide 24 months free warranty and free technical support for the whole life of any machine.If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q4. Can you be responsible for transport?
A4: Yes, please tell me the destination port or address. we have rich experience in transporting.
4. Flow chart of Purlin Roll Forming Machine
Decoiling – Feeding - Flattening — Lip forming - Flange forming - Angle forming – Straightening - Punching - Cutting – Stacking

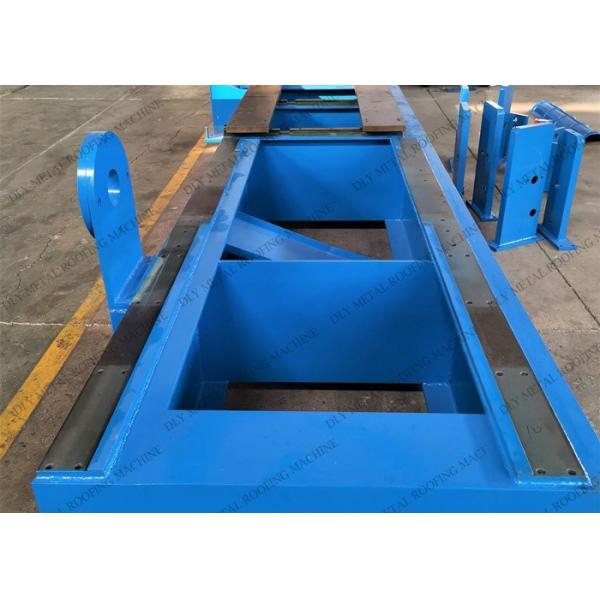

5. Detail photos of C U Z Purlin Roll Forming Machine
